Logging

Log data collected from Aviatrix managed gateways can be forwarded by remote syslog to a log server.

In the Settings > Logging Services page, you can configure the forwarding of logs from the Aviatrix Platform to remote syslog (rsyslog) and the log servers of well-known log management systems.

Overview of Gateway Logging

The Aviatrix managed gateways can be configured to forward their logs to a syslog log management system. All managed gateways will forward the logs directly to the logging server. Therefore, each managed gateway needs network connectivity to the logging server.

Aviatrix supports using remote syslog (rsyslog) for forwarding log messages. Remote syslog as the log forwarder is both efficient and the industry standard. Most log collectors support rsyslog as a log forwarder.

In the Aviatrix PaaS console, you can enable log data collection from Aviatrix gateways to the following log server:

In addition to standard information on syslog, Aviatrix logs also provide informational insights into security rule violation statistics, gateway stats, and FQDN filter violations.

Your log management system can sift through the Aviatrix logs to get meaningful trend charts that can help monitor aspects of your network. See Aviatrix Log Formats for a list of useful Aviatrix logs that can be parsed on the log management system to display relevant analytics of data collected from Aviatrix gateways.

The process the Aviatrix gateways use for exporting their log files is as follows:

  • Aviatrix gateways stream the log lines being written to the syslog and auth.log files.

  • When you use the default rsyslog server configuration, the logs streamed from the gateways have multiple files.

  • Each file is named with the application that generated the log.

    For example, all logs generated by the avx-gw-state-sync application are re-directed to a file named avx-gw-state-sync" on the log server.

Log Format

The log format is shown below. Your syslog collectors and any related automation for ingesting logs must accept the log format.

Format: [Timestamp] GW-[Name of Gateway]-[Public IP of Gateway] [Name of Application generating log][Application Process ID]: [Log message]

Example of log format:

Mar 23 19:17:50 GW-UdpGateway-50.17.41.173 avx-gw-state-sync[11249]: warn#011gateway_launcher/gateway_launcher.go:212#011daemon exited

Prefix of log: [Timestamp] GW-[Name of Gateway]-[Public IP of Gateway]

Example prefix: Mar 23 19:17:50 GW-gg-aws-usw2-s127-35.162.124.66

The Aviatrix Remote Syslog Forwarder

If you want to forward syslog data collected on Aviatrix gateways, the Aviatrix Platform offers a remote syslog forwarder for sending syslog data from Aviatrix gateways to your designated remote syslog server.

You can configure the Aviatrix Remote Syslog forwarder in Settings > Logging Services > Remote Syslog.

Before configuring the Aviatrix Remote Syslog forwarder, collect the following information:

  • FQDN or IP address of the remote syslog server

  • Port number and protocol type of the listening port of the remote syslog server

  • Certificate Authority (CA) certificate for the server

  • Public client certificate signed by the same CA

  • Private client key that pairs with the public certificate

Aviatrix PaaS expects certificates in PEM format. Convert any certificates downloaded from your external logging server’s documentation into PEM format. Attempting to upload the wrong format could return an Exception Error.

Syslog Profiles

You configure profiles for remote syslog to define the remote server where logs are sent, the protocol and port for access, certificates (optional), and from which VPCs or VNets to collect logs. A total of 9 profiles are supported for remote syslog.

Newly deployed gateways are added to a profile if it is the only profile enabled.

If more than one profile is enabled, the newly deployed gateway will not be added to any profile. You can use the advanced options in the logging "Edit Options" window to edit the exclude and include list.

Configure Remote Syslog

  1. Go to Settings > Logging Services.

  2. Under Remote Syslog, click + Profile.

  3. Configure the following:

    Field Description

    Profile Name

    Enter a unique descriptive name for the profile

    Server

    FQDN or IP address of the remote syslog server

    Protocol

    TCP or UDP

    Port

    Listening port of the remote syslog server

    Server CA Certificate

    Certificate Authority (CA) certificate for the syslog server

    Client Certificate

    Public certificate for Aviatrix platform, signed by the same CA as the server

    Client Private Key

    Private encryption key that pairs with the public certificate

    Custom Template

    (Optional) Define a custom format for syslog messages, which can be useful when forwarding to third party servers like Datadog

    VPCs/VNets included

    Select the VPCs/VNets that should forward logs to remote syslog

  1. Click Enable.

    The agent details display on the Logging Services page.

Configure Remote Syslog on the Remote Syslog Server

Configure the remote server to receive data from Aviatrix PaaS.

On the remote syslog (rsyslog) server:

  1. Install rsyslog and rsyslog-gnutls packages.

  2. Create a new configuration file in /etc/rsyslog.d to enable the TLS connection.

    The file should contain content similar to what is shown in the example below, depending on your rsyslog version. Please make sure key paths are readable by the syslog user.

    Remote Syslog version 8 or later:

    global(
    DefaultNetstreamDriver="gtls"
    DefaultNetstreamDriverCAFile="/etc/cert/rsyslog-ca.pem"
    DefaultNetstreamDriverCertFile="/etc/cert/rsyslog-crt.pem"
    DefaultNetstreamDriverKeyFile="/etc/cert/rsyslog-key.pem"
)
template(name="TmplMsg" type="list") {
    constant(value="/var/log/aviatrix/")
    property(name="hostname")
    constant(value="/")
    property(name="programname" SecurePath="replace")
    constant(value="")
    }
ruleset(name="remote"){
    *.info;mail.none;authpriv.*;cron.none action(type="omfile" DynaFile="TmplMsg")
}
module(
    load="imtcp"
    StreamDriver.Name="gtls"
    StreamDriver.Mode="1"
    StreamDriver.Authmode="anon"
)
input(type="imtcp" port="514" ruleset="remote")

    Remote Syslog version 7 or earlier:

    $ModLoad imtcp
$InputTCPServerRun 514

$DefaultNetstreamDriver gtls

#Certificate location
$DefaultNetstreamDriverCAFile /etc/cert/rsyslog-ca.pem
$DefaultNetstreamDriverCertFile /etc/cert/rsyslog-crt.pem
$DefaultNetstreamDriverKeyFile /etc/cert/rsyslog-key.pem

$InputTCPServerStreamDriverAuthMode x509/certvalid
$InputTCPServerStreamDriverMode 1 # run driver in TLS-only mode

# Re-direct logs to host specific directories
$template TmplMsg, "/var/log/aviatrix/%HOSTNAME%/%PROGRAMNAME%"
*.info,mail.none,authpriv.*,cron.none ?TmplMsg
& ~

  1. Make sure the output directory /var/log is writable by rsyslog user/daemon.

  2. Restart rsyslog service and verify that the port is listening and there are no errors in /var/log/syslog.

  3. Confirm the port is allowed in the security group/firewall for incoming traffic.

  4. Go to the /var/log/aviatrix directory.

  5. Find the directory of the desired gateway.

    • The gateway directory name is in a format of GW-gateway_name-public_IP_of_gateway

  6. Each gateway directory should have:

    • auth.log

    • syslog

Related Links for Log Collectors

Aviatrix supports using Remote Syslog (rsyslog) for forwarding log messages. Most log collectors support rsyslog as a log forwarder. The following are links related to log collectors and rsyslog:

Edit or Disable Remote Syslog

You can edit an existing profile. You can also disable a profile. When a profile is disabled, the configuration is deleted and no longer available.

  1. Go to Settings > Logging Services.

  2. Under Remote Syslog, click Edit Profile.

  3. If there is more than one profile, select the profile you want to edit.

  4. Do one of the following:

    • Make the desired updates and click Save.

    • Click Disable and confirm disabling the profile.

      The profile is deleted and no longer available.

The Aviatrix Datadog Agent

If you use Datadog, the Aviatrix Platform offers a Datadog agent for sending system metrics from Aviatrix gateways to your configured Datadog instance.

You can configure the Aviatrix Datadog agent in Settings > Logging Services > Datadog Agent.

Before configuring the Aviatrix Datadog agent, collect the following information:

  • Datadog API key

  • Datadog site you want to send to

  • If only specific VPCs or VNets should forward logs to Datadog, have their names available

Configure the Aviatrix Datadog Agent

If you use Datadog, you can configure the Aviatrix Remote Syslog forwarder to send syslog data from Aviatrix gateways to your configured Datadog instance.

  1. In Settings > Logging Services > Datadog Agent, click Enable.

  2. Configure the following:

    Field Description

    API Key

    Enter your Datadog API key.

    Site

    Select the Datadog site from the list.

    Export

    Select Syslog & Metrics or Only Metrics.

    VPCs/VNets Included

    (Optional advanced setting) Select All or select specific VPCs/VNets to forward logs to Datadog.

  3. Click Enable.

    The agent details display on the Logging Services page.

Related Topics

Datadog documentation: Using Rsyslog to send logs to Datadog

Edit or Disable the Datadog Agent

You can edit an existing agent configuration. You can also disable a logging agent. When an agent is disabled, the configuration is deleted and no longer available.

  1. Go to Settings > Logging Services.

  2. Under Datadog Agent, click Edit.

  3. Do one of the following:

    • Make the desired updates and click Save.

    • Click Disable and confirm disabling the agent.

      The agent configuration is deleted.

  1. Click Save.

    The agent details display on the Logging Services page.

The Aviatrix CloudWatch Agent

If you use CloudWatch, the Aviatrix Platform offers a CloudWatch agent for sending syslog from Aviatrix gateways to your configured AWS CloudWatch instance.

Only gateways on AWS cloud accounts onboarded using CloudFormation are supported.

AWS gateways created from an access account with an AWS secret key and access key are not supported.

Configuring the CloudWatch agent is a two-step process. You must do the following:

  1. Assign the required roles and policies in AWS

  2. Enable the CloudWatch agent in Aviatrix at Settings > Logging Services > CloudWatch Agent

Assign Roles and Policies to CloudWatch

You can configure Aviatrix gateways in different AWS accounts to send and update logs to the collector’s AWS account. Follow the instructions below to set up an IAM role and policies on the collector’s AWS account.

Logs from CloudWatch can be exported to S3 buckets. Please see the AWS Documentation.

  1. Log in to the collector’s AWS account, go to Identity and Access Management (IAM) > Roles and click Create role.

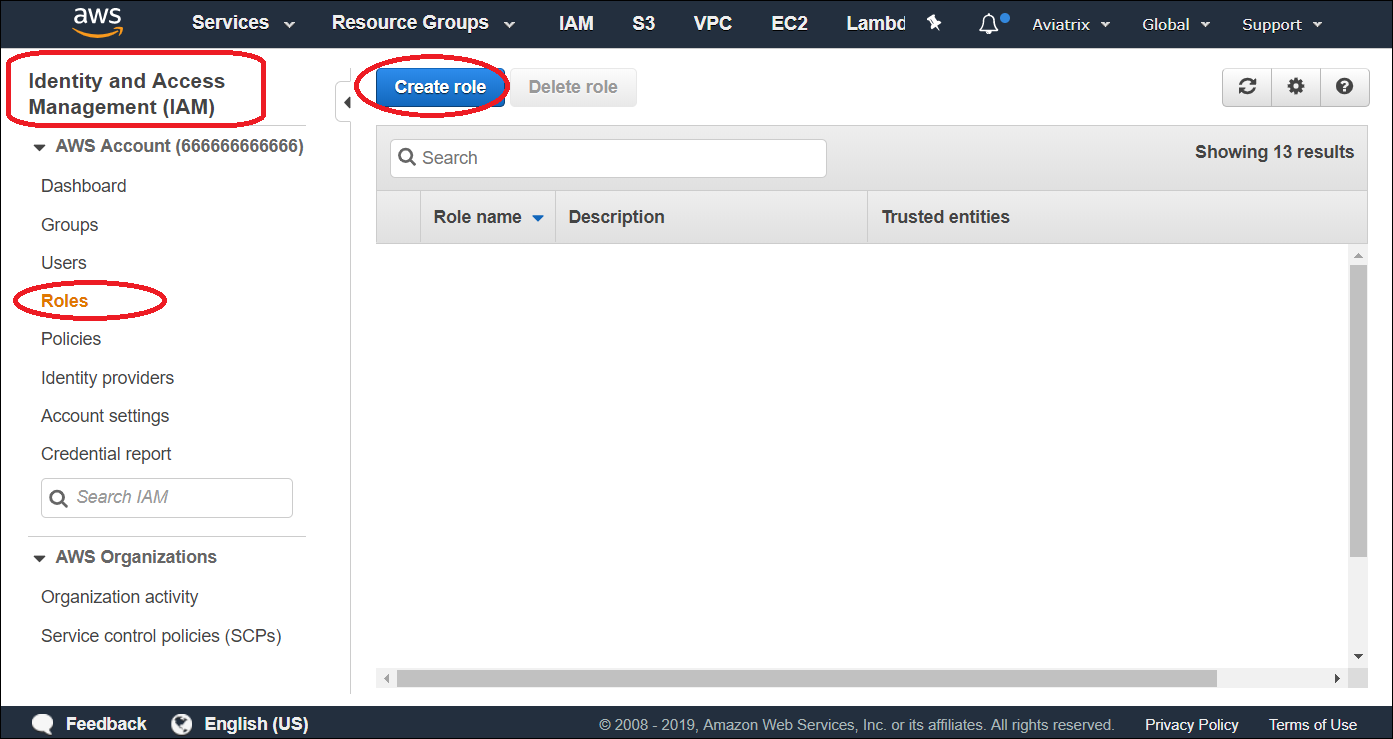

    create role in aws

  2. Under Trusted entity type, select AWS account.

  3. Under An AWS account, select your current account or a new account and click Next.

  4. Under Permissions policies, find and select the policy CloudWatchAgentServerPolicy and click Next.

    Click the checkbox, not the policy name.

  5. Under Role details, enter the Role name aviatrix-role-cloudwatch.

    Do not change the role name.

  6. Under Select trusted entities, click Edit and add trust relationships for all Aviatrix gateway AWS accounts.

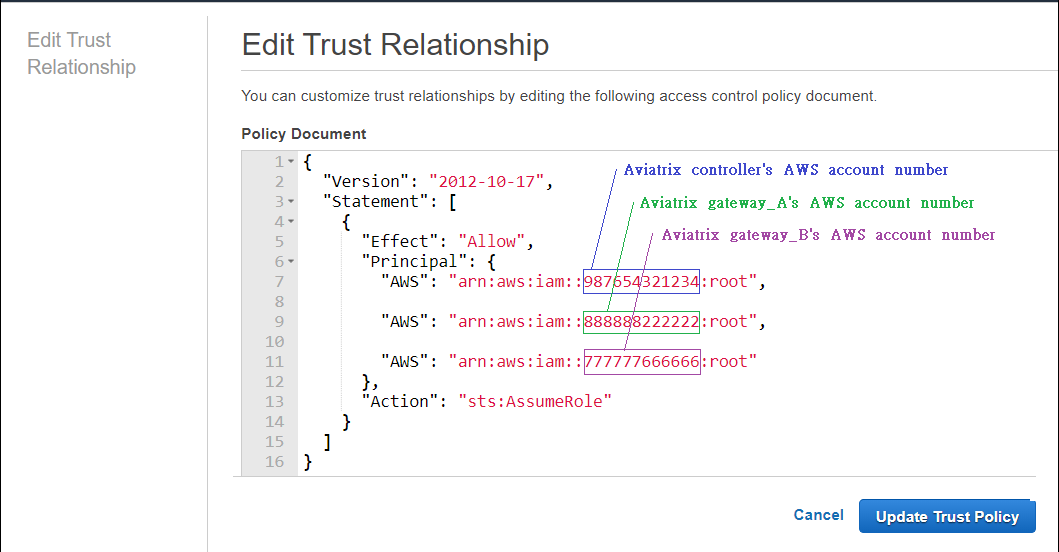

    trust relationship syntax

  7. Click Create role.

  8. On the Roles page, click the name of the new role aviatrix-role-cloudwatch and copy the ARN value under Summary.

    Keep this ARN value as you will need it to configure another policy and to enable CloudWatch in Aviatrix PaaS console.

  9. Return to the Roles page and click the role name aviatrix-role-ec2-<long-id>.

    Example: aviatrix-role-ec2-a-bb1cc222dd3e44f5g6hh7i88j99k0mm111

  10. Under Permissions policies, click Add permissions > Attach policies.

  11. On the Roles page > Permissions tab, click Add permissions > Create inline policy.

  12. On Specify permissions, select the JSON editor.

  13. In the Policy editor, enter (or select in the right pane) the following:

    • Sid: VisualEditor0

    • Effect: Allow

    • Action: sts:AssumeRole

    • Resource: arn:aws:iam:<your-account-number>:role/aviatrix-role-cloudwatch

      This is the ARN you previously copied. You will also need it when enabling CloudWatch in Aviatrix PaaS console.

      Example:

      {
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "VisualEditor0",
      "Effect": "Allow",
      "Action": ["sts:AssumeRole"],
      "Resource": ["arn:aws:iam:<your-account-number>:role/aviatrix-role-cloudwatch"]
    }
  ]
}

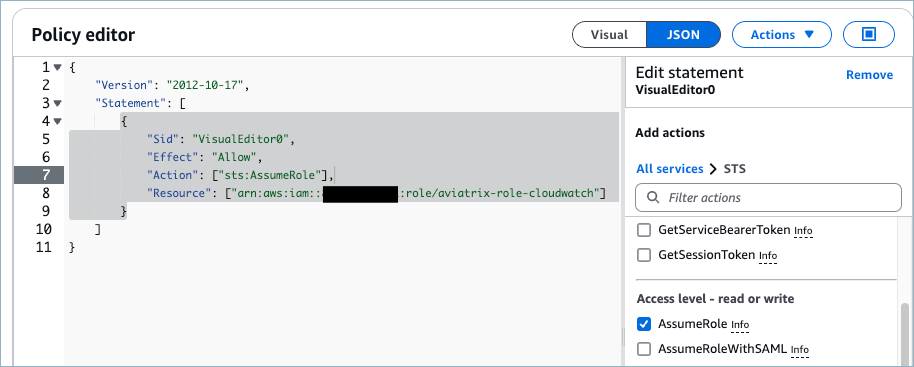

      policy editor with required content added

  14. Click Next.

  15. Enter a policy name, review the policy, and click Create policy.

    The new permission policy displays on the aviatrix-role-ec2-<your-id> page.

Related Topics

AWS documentation: Application-level CloudWatch configuration

Configure the CloudWatch Agent in Aviatrix

If you use AWS CloudWatch, you can configure the Aviatrix Remote Syslog forwarder to send syslog data from Aviatrix gateways to AWS CloudWatch.

Prerequisites

You must have configured the CloudWatch agent in AWS, including assigning roles and policies required by Aviatrix PaaS.

Before configuring the Aviatrix CloudWatch agent, collect the following information:

  • CloudWatch role ARN

  • AWS Cloud Type

  • AWS Region

  • Log group name (optional)

  • VPCs/VNets to forward logs (all, or specific names)

Perform the following steps in Aviatrix PaaS console:

  1. On Settings > Logging Services > CloudWatch Agent, click Enable.

  2. Configure the following:

    Field Description

    CloudWatch role ARN

    This is the ARN for the AWS IAM role aviatrix-role-cloudwatch. It can be copied from the IAM > Roles > Summary page for that role.

    AWS Cloud Type

    "Standard" is the only option.

    AWS Region

    The region in which CloudWatch is configured.

    Log Group Name

    (Optional) If you use log groups, enter the unique identifier for the CloudWatch log group in the selected AWS region.

    VPCs/VNets Included

    (Optional advanced setting) Select All or select specific VPCs/VNets to forward logs to CloudWatch.

  3. Click Enable.

    The agent details display on the Logging Services page.

Edit or Disable the CloudWatch Agent

You can edit or disable an existing agent configuration in Aviatrix PaaS. When an agent is disabled, the configuration is deleted and no longer available.

  1. In Aviatrix PaaS console, go to Settings > Logging Services.

  2. Under CloudWatch Agent, click Edit.

  3. Do one of the following:

    • Make the desired updates and click Save.

    • Click Disable and confirm disabling the agent.

      The agent configuration is deleted.
