Monitoring System Health of Resources

Configure Resources and Time Period

You can configure the monitor resource and time period.

Choose Monitor Resource

From the Monitor field, select the resource you want to view. Available options include:

Controller
CoPilot
CoPilot data disks (only available in a clustered deployment)

Choose Monitor Time

You can also select the time period and start and end dates for the data you want to view. Options for the time period include live view, predefined time ranges, or a custom range.

Click Apply to apply the selected monitor resource and time period.

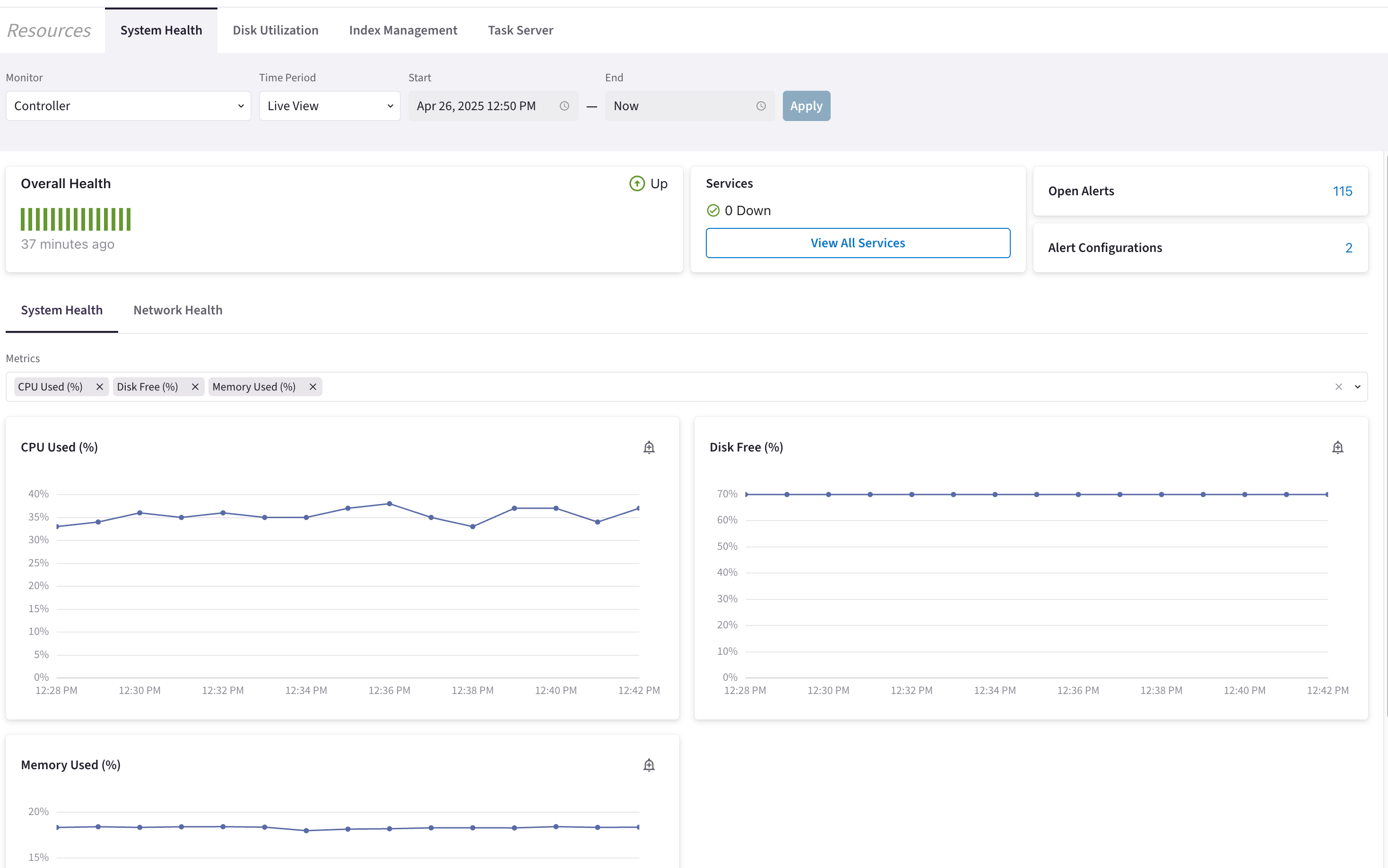

Overall Health

The overall health diagram provides a general overview of system health using visual and textual indicators. The vertical bar chart displays recent performance trends, with green bars representing a healthy state. Hovering over a bar reveals detailed metrics, providing insight into resource utilization at that time.

The overall status label in the top-right corner reflects system health:

Up — Green icon, indicating a healthy status.
Degraded — Yellow icon, indicating a degraded status.
Down — Red icon, indicating a critical status.

Services

Under Services, you can see how many services are currently in a Down state for the selected resource.

Clicking View All Services opens a list of all monitored services for the selected resource. You can also restart services from this list.

Open Alerts and Alert Configurations

If you selected Controller or CoPilot as the resource, you can view the total number of Open Alerts and Alert Configurations in your environment.

Clicking either total opens a list with further details. You can click View in Alerts to navigate to Notifications and see the alert details.

In the Alert Configuration popup, you can also click View in Alert Configurations to access your configured alerts in Notifications.

System Health and Network Health

The Controller has two sub-tabs, allowing you to view System Health and Network Health separately. CoPilot and CoPilot data disk resources display only the System Health sub-tab.

Clicking in the Metrics field shows a list of available metrics for the selected resource. Below the metrics list, graphs provide detailed visualizations for the selected metrics. By default, CPU Used (%), Disk Free (%), and Memory Used (%) are displayed.

Each graph includes an alert icon. Clicking the icon opens a Create Alert Configuration dialog box.

It is recommended to upgrade the virtual machine size if Aviatrix platform global health alerts are triggered frequently.

System Health Services

Clicking the Services > View All Services button opens a dialog box displaying the status of services for the selected resource.

When Controller is selected, the following services are displayed:

CLOUDXD
PKI
PERFMON
RSyslog
GlobalConfigDB
MongoDB
ConduitDaemon

When CoPilot is selected, the following services are displayed:

db
etl
web
CoPilot
Cache Server
Task Server
Update Agent
Topology Service
Metrics Service
CoPilot Udp Tunnel

In a cluster environment, when a CoPilot Data Disk is selected, the following services are displayed:

db
web
CoPilot
Update Agent
Topology Service
Metrics Service
CoPilot Udp Tunnel

System Health Metrics

Below are the system health metrics you can monitor:

Name (System Metric)	Description	Internal Metric Name
CPU Idle (%)	Of the total CPU time, the percentage of time the CPU(s) spent idle and waiting for tasks from the kernel.	cpu_idle
CPU Kernel Space (%)	Of the total kernel space memory on the host (VM/instance), the percentage of time spent running kernel code.	cpu_ks
CPU Steal (%)	Of the average CPU wait time on the host (VM/instance), the percentage of time a virtual CPU waits for a real CPU while the hypervisor services another virtual processor.	cpu_steal
CPU Used (%)	The percentage of CPU used.	cpu_used_per
CPU User Space (%)	Of the total CPU time, the percentage of time spent running non-kernel code.	cpu_us
CPU Wait (%)	Of the total CPU time, the percentage of time spent waiting for IO.	cpu_wait
Disk Free	The storage space on the disk (volume) that is free/unused.	hdisk_free
Disk Free (%)	Of the total storage space on the disk (volume), the percentage of storage space that is free/unused.	hdisk_free_per
Disk Total	The total storage space on the disk (volume).	hdisk_tot
IO Blocks In	The number of blocks received per second from a block device.	io_blk_in
IO Blocks Out	The number of blocks sent per second to a block device.	io_blk_out
Memory Available	The available amount of memory that can be allocated to new or existing processes.	memory_available
Memory Available (%)	Of the total memory, the percentage of the available memory that can be allocated to new or existing processes.	memory_available_per
Memory Buffer	The amount of memory used as buffers.	memory_buf
Memory Cache	The amount of memory used as cache.	memory_cached
Memory Swapped	If swapped is enabled, the amount of virtual memory used.	memory_swpd
Memory Total	The total memory.	memory_tot
Memory Used	The amount of memory used.	memory_used
Memory Used (%)	Of the total memory, the percentage of memory used.	memory_used_per
Processes Uninterruptible Sleep	The number of processes blocked waiting for I/O to complete.	nproc_non_int_sleep
Processes Waiting To Be Run	The number of processes that are running or waiting for run time.	nproc_running
Swaps From Disk	Memory that is swapped in every second from disk in kilobytes.	swap_from_disk
Swaps To Disk	Memory that is swapped out every second to disk in kilobytes.	swap_to_disk
System Context Switches	The number of context switches per second.	system_cs
System Interrupts	The number of interrupts per second, including the clock.	system_int

Name (System Metric)

Description

Internal Metric Name

Accessible by API

CPU Idle (%)

Of the total CPU time, the percentage of time the CPU(s) spent idle and waiting for tasks from the kernel.

cpu_idle

CPU Kernel Space (%)

Of the total kernel space memory on the host (VM/instance), the percentage of time spent running kernel code.

cpu_ks

CPU Steal (%)

Of the average CPU wait time on the host (VM/instance), the percentage of time a virtual CPU waits for a real CPU while the hypervisor services another virtual processor.

cpu_steal

CPU Used (%)

The percentage of CPU used.

cpu_used_per

CPU User Space (%)

Of the total CPU time, the percentage of time spent running non-kernel code.

cpu_us

CPU Wait (%)

Of the total CPU time, the percentage of time spent waiting for IO.

cpu_wait

Disk Free

The storage space on the disk (volume) that is free/unused.

hdisk_free

Disk Free (%)

Of the total storage space on the disk (volume), the percentage of storage space that is free/unused.

hdisk_free_per

Disk Total

The total storage space on the disk (volume).

hdisk_tot

IO Blocks In

The number of blocks received per second from a block device.

io_blk_in

IO Blocks Out

The number of blocks sent per second to a block device.

io_blk_out

Memory Available

The available amount of memory that can be allocated to new or existing processes.

memory_available

Memory Available (%)

Of the total memory, the percentage of the available memory that can be allocated to new or existing processes.

memory_available_per

Memory Buffer

The amount of memory used as buffers.

memory_buf

Memory Cache

The amount of memory used as cache.

memory_cached

Memory Swapped

If swapped is enabled, the amount of virtual memory used.

memory_swpd

Memory Total

The total memory.

memory_tot

Memory Used

The amount of memory used.

memory_used

Memory Used (%)

Of the total memory, the percentage of memory used.

memory_used_per

Processes Uninterruptible Sleep

The number of processes blocked waiting for I/O to complete.

nproc_non_int_sleep

Processes Waiting To Be Run

The number of processes that are running or waiting for run time.

nproc_running

Swaps From Disk

Memory that is swapped in every second from disk in kilobytes.

swap_from_disk

Swaps To Disk

Memory that is swapped out every second to disk in kilobytes.

swap_to_disk

System Context Switches

The number of context switches per second.

system_cs

System Interrupts

The number of interrupts per second, including the clock.

system_int

Network Health Metrics

Only the Controller has the Network Health tab.

Below are the network health metrics you can monitor:

Name (Network Metric)

Description

Internal Metric Name

Accessible by API

Bandwidth Egress Limit Exceeded

bandwidth_egress_limit_exceeded

Bandwidth Egress Limit Exceeded (%)

per_bandwidth_egress_limit

Bandwidth Egress Limit Exceeded Rate

The number of tx packets dropped because the bandwidth allowance limit was exceeded.

This metric is supplied by the Elastic Network Adapter (ENA) driver only on AWS.

rate_bandwidth_egress_limit_exceeded

Bandwidth Ingress Limit Exceeded

bandwidth_ingress_limit_exceeded

Bandwidth Ingress Limit Exceeded (%)

The percentage of dropped rx packets due to exceeding the bandwidth allowance limit. This metric is specific to the ENA driver on AWS.

per_bandwidth_ingress_limit_exceeded

Bandwidth Ingress Limit Exceeded Rate

(AWS Only) Bandwidth Ingress Limit Exceeded Rate — The number of rx packets dropped because the bandwidth allowance limit was exceeded.

This metric is supplied by the ENA driver only on AWS.

rate_bandwidth_ingress_limit_exceeded

Collisions during Transmission

The count of collisions during packet transmission.

tx_colls

Collisions Rate during Transmission

The number of collisions per second during packet transmission.

rate_tx_colls

Compressed Packets Received

The count of compressed packets received.

rx_compressed

Compressed Packets Received Rate

The number of compressed packets received per second.

rate_rx_compressed

Compressed Packets Transmitted

The count of correctly received compressed packets.

tx_compressed

Compressed Packets Transmitted Rate

The number of correctly received compressed packets per second.

rate_tx_compressed

Conntrack Allowance Available

(AWS Only) Reports the number of available tracked connections that can be established before an instance’s Connections Tracked allowance is exceeded. This metric is supplied by the Elastic Network Adapter (ENA) driver only on AWS.

conntrack_allowance_available

Conntrack Limit Exceeded

conntrack_limit_exceeded

Conntrack Limit Exceeded (%)

per_conntrack_limit_exceeded

Conntrack Limit Exceeded Rate

Conntrack limit exceeded rate.

rate_conntrack_limit_exceeded

Conntrack Usage Rate

(AWS Only) The rate at which conntrack capacity is being used up in connections per second. The Conntrack Usage Rate metric is only available in AWS where the Conntrack Allowance Available (conntrack_allowance_available) metric is present.

conntrack_usage_rate

Drop Rate during Transmission

The number of packets being dropped per second while sending.

rate_tx_drop

Drop Rate while Receiving

The number of packets being dropped per second while receiving.

rate_rx_drop

Errored Packets Received

The count of packets received that is flagged by the kernel as errored.

rx_errs

Errored Packets Received Rate

The number of packets received per second that is flagged by the kernel as errored.

rate_rx_errs

Errored Packets Transmitted

The total number of transmit problems.

tx_errs

Errored Packets Transmitted Rate

The total number of transmit problems per second.

rate_tx_errs

Interface Drops during Transmission (%)

per_tx_drop

Interface Drops while Receiving (%)

per_rx_drop

Interface Errors during Transmission (%)

per_tx_errs

Interface Errors while Receiving (%)

per_rx_errs

Limit Exceeded Rate (PPS) - AWS Only

The number of packets that exceed the maximum for the instance type that are processed (bidirectionally) by the Aviatrix gateway per second.

rate_pps_limit_exceeded

Linklocal Limit Exceeded

linklocal_limit_exceeded

Linklocal Limit Exceeded (%)

per_linklocal_limit_exceeded

Linklocal Limit Exceeded Rate

rate_linklocal_limit_exceeded

Multicast Packets Received

rx_multicast

Multicast Packets Received Rate

The number of multicast packets per second.

rate_rx_multicast

PPS Limit Exceeded

The count of bidirectional packets that exceed the maximum for the instance type and are handled by the Aviatrix gateway.

pps_limit_exceeded

PPS Limit Exceeded Drop (%)

per_pps_limit_exceeded

Packet Drop (%)

per_pkt_drop

Packet Drop Rate

The rate at which packets are dropped per second.

rate_pkt_drop

Packet Failure (%)

per_pkt_fail

Packet Failure Rate

rate_pkt_fail

Packets Dropped during Transmission

The count of packets that were dropped during transmission, often due to resource constraints.

tx_drop

Packets Dropped while Receiving

The count of received packets that were not processed, typically due to resource limitations or unsupported protocols.

rx_drop

Peak Received Rate

rate_peak_received

Peak Total Rate

rate_peak_total

Peak Transmitted Rate

rate_peak_sent

Received Bytes

rx_bytes

Received Frames Rate

Received Frame Rate

The number of frame alignment errors per second when receiving packets. On AWS, this may occur due to RX buffer overruns on physical interfaces, which can result in packet drops by the NIC.

rate_rx_frame

Received Packets

rx_packets

Received Rate

rate_received

Received Rate (PPS)

Packets Received Rate — The total (received) transmission in packet level per second.

pkt_rx_rate

Receiver FIFO Frames

rx_fifo

Receiver FIFO Frames Rate

The number of overflow events per second when receiving packets.

rate_rx_fifo

Received Frames

rx_frame

Total Attempted Rate

rate_pkt_attempted

Total Rate

The total (bidirectional) rate of bits processed per second by the interface on the Aviatrix VM/instance.

rate_total

Total Rate (in packets)

The total (bidirectional) transmission in packet level per second. Instance size impacts how many packets per second the gateway can handle.

pkt_rate_total

Transmission FIFO Frames Rate

The number of frame transmission errors per second due to device FIFO underrun/underflow.

rate_tx_fifo

Transmission FIFO Frames

The number of frame transmission errors due to device FIFO underrun/underflow.

tx_fifo

Transmitted Bytes

tx_bytes

Transmitted Carrier Frames

tx_carrier

Transmitted Carrier Frames Rate

rate_tx_carrier

Transmitted Packets

tx_packets

Transmitted Rate

The rate of bits per second that has been transmitted by the interface on the Aviatrix gateway VM/instance.

rate_sent

Transmitted Rate (PPS)

pkt_tx_rate

Related Topics

For descriptions of the available metrics, see Metrics Monitored for Aviatrix Resources.

For information about alert notifications, see Notifications (Alerts) About Network Events.
